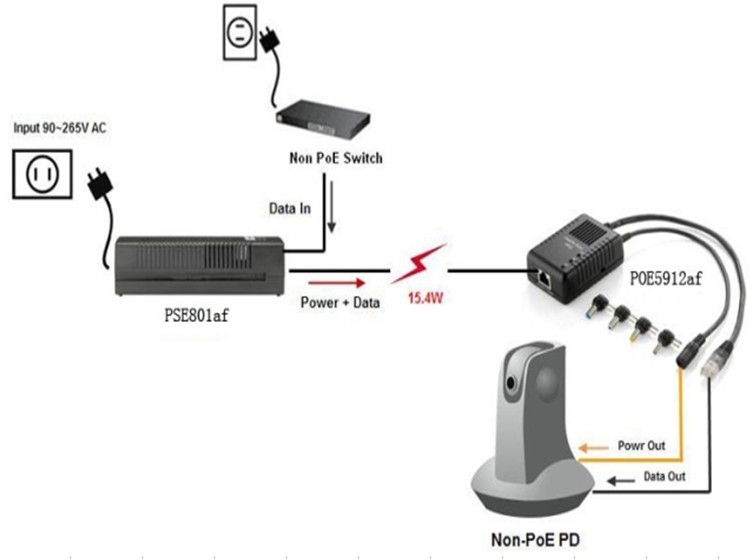

设备配合PSE801-FM可以为不支持POE的普通设备和普通接口供电的，100%兼容。（如图）

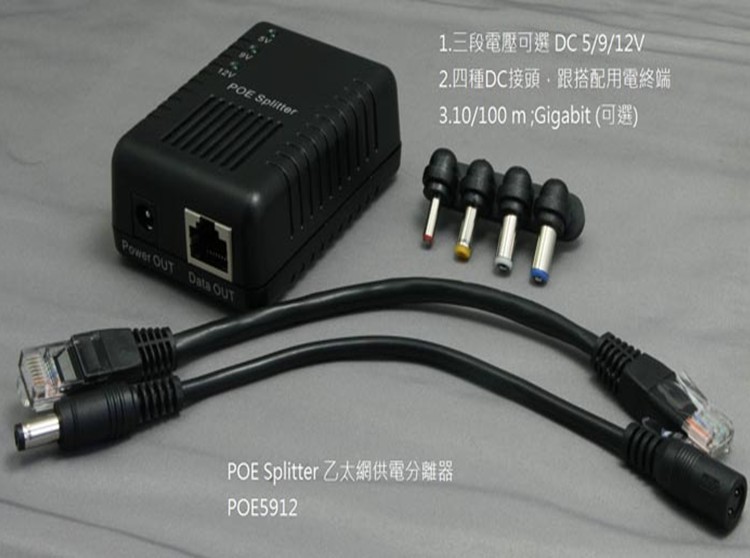

POE供电分离器 POE Splitter
提供直流三段电压输出选择，使用根据设备需求切换DC：5V/9V/12V

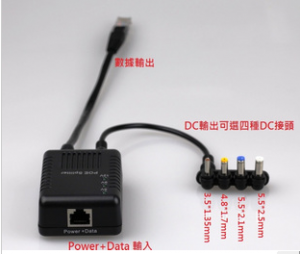

提供四種DC 接頭:2.5mm/2.0mm
Data Rate :10/100 Mbps
Input Power Requirement: 1/2(+),3/6 (–) or 4/5(+),7/8(-)
Input Power Voltage:
PoE5912: 48Vdc/0.35A,
Output Power:
PoE5912: 5V(2A),9V(1.1A),12V(1A)
Dimensions: 80 mm x 55 mm x 31 mm
Weight .76g
Diagnostic LEDs: DC Power (Green)
Connectors: Shielded RJ-45, EIA 568A and 568B
Environmental Conditions :
Operating Ambient Temperature: -10 to 45℃
Regulatory IEEE 802.3at, IEEE 802.3af,

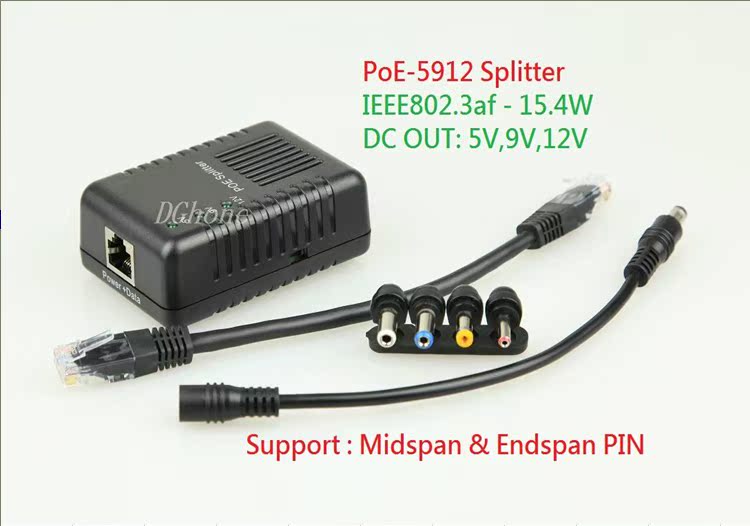

PoE5912 series splitter ( Power over Ethernet Splitter) splits a networked PoE signal into separated power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network Non-PoE devices. Save installation and equipment cost when installing access points. IP cameras and more in remote locations. Do not need to install network devices near a power outlet.This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and Non-PoE network at Gigabit speeds. >> Network devices at Gigabit speeds all within a compact device One PoE Splitter Owerview
Main Features
>> Automatically detects PoE terminals and supplies inline power
>> Easily install Non-PoE devices where a power outlet is not available
>> Reduce installation and network equipment costs
>> Safeguards network device with short circuit protection
>> Adjustable output DIP switch for 5V,9V and 12V adjustable output
>> Converts Non-PoE devices with Power over Ethernet support
>> Auto-sensing power drawn from 802.3af/ 802.3at power source equipment (PSE) devices
>> Supplies power up to 12-25 watts
>> Light weight and compact sizeSpecifications
PoE Splitter Models Specifications Model PoE5912 PoE5912G PoE5912TG Requlatory 802.3af 802.3af 802.3at Data Rate 10/100M Gigabit Gigabit Input Power Voltage DC48V/0.3A DC48V/0.3A DC48V/0.6A Output Power Voltage 5V(2A), 9V(1.1A), 12V(1A) 5V(2A), 9V(1.1A), 12V(1A) 5V(4.5A), 9V(2.3A), 12V(2A) Input Power Requirement 1/2(+) 3/6(-) or 4/5(+) 7/8(-) Jumper Cable DC 2.1*5.5*9.5mm (L-300mm) Connectors Shielded RJ-45, EIA 568A and 568B Diagnostic LEDs DC Power is Green Temperature Operating:-10 ~ 45℃ Humidity 10 ~ 90% (Non-Condensing) Dimension 80 (L) x 55 (W) x 31 (H) mm Weight 76 g Certification CE, FCC Package Contents
Ordering Model
Model Description PoE5912 802.3af, 10/100M, 12.95W PoE5912-G 802.3af, Gigabit, 12.95W PoE5912TG 802.3at, Gigabit, 25W
